S2MF301A IC FOR SAMSUNG HARGER IC S2MF301

S2MF301A IC FOR SAMSUNG HARGER IC S2MF301

ABOUT THIS ITEM

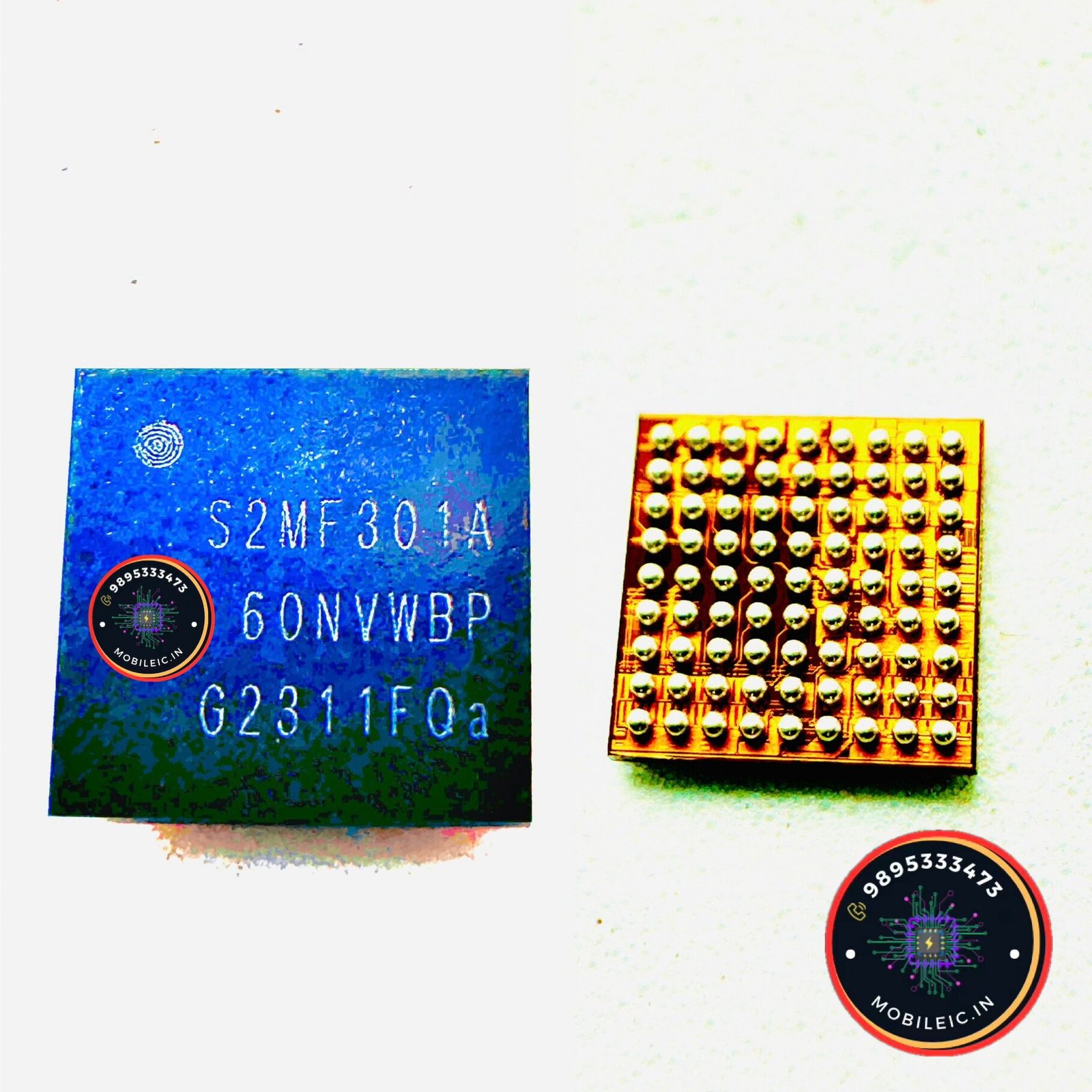

S2MF301A IC

COMPATIBILITY MODEL

BRAND COMPATIBILITY

SAMSUNG

BRAND COMPATIBILITY & MODEL COMPATIBILITY

COLOR BLACK

WARRANTY YES MANUFACTURING DEFECTS ONLY

WEIGHT 8 GRAM

COMPLIANT WITH MOBILE THIS IC: S2MF301A IC

IC (CHIP ) CONNECTOR BACK SIDE PIN NO.

SPECIFICATIONS SPECIFCAE

* APPLICATION: MOBILE PHONE

* BRAND NAME: IC S2MF301 CHARGER IC

* TYPE: DRIVE IC

* PLACE OF ORIGIN: CHINA

* MODEL NUMBER: S2MF301 IC

* SUPPLY VOLTAGE:

* DISSIPATION POWER:

* OPERATING TEMPERATURE:

* CONDITION: NEW

* PACKAGE: BGA

* TESTED WITH HIGH QUALITY 100%

PACKAGE INCLUDES:

1 X  S2MF301  IC CHIP

Role in Mobile Phone Repair

The S2MF301A is a crucial component in the power circuitry of Samsung phones. It is typically responsible for managing power flow, especially related to the USB port and charging process.

Technicians often replace this IC when a Samsung phone exhibits the following issues:

• No Charging: The phone does not react when a charger is plugged in.
• Slow Charging: The charging speed is abnormally slow, even with a fast charger.
• False Charging Indication: The phone shows it is charging, but the battery percentage does not increase (or decreases).
• USB Connectivity Issues: Problems with data transfer or connection to a PC, although this can also be related to a separate USB controller.
• Dead Phone: In severe cases where a short circuit or failure in the power input path occurs.

Power Management or USB Charging Control IC
